Flexible broadband internet with throughputs up to 20 Mbps for Hybrid Services (Terrestrial & Satellite)

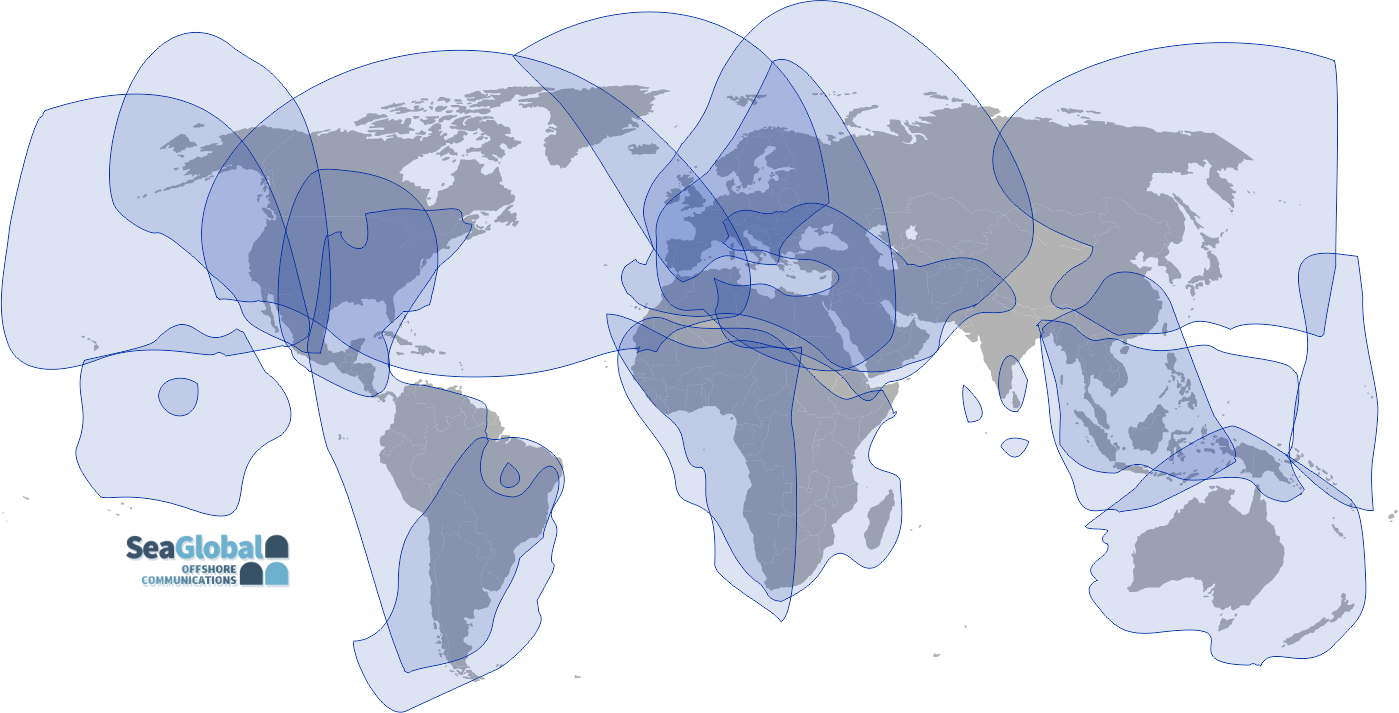

Coverage Area includes Americas, Australia, Asia, POR, Caribbean, AOR, Europe, Mediterranean, East and West Coast Africa
Multiple Satellites in most areas provides layered coverage for redundancy and ABS solutions
Four option YachtKu Plans designed for Leisure Vessels
Shared
Dedicated
Compact
Hybrid at Caribbean and Mediterranean (Available Q2, Q2014)
Yacht Ku Global Shared Plan
Contention Ratio 4:1
Unique Flexible month to month plan
No long term commitments
ABS in the major cruises areas
Flat Fee with unlimited data transfers
Additional VoIP plans and Global DIDs available
Yacht Ku Global Dedicated Plan
Dedicated chanel
Unique Flexible month to month plan
No long term commitments
ABS in the major cruises areas
Flat Fee with unlimited data transfers
Additional VoIP plans and Global DIDs available
Yacht Ku Hybrid Plan
Contention Ratios 5:1 Shared and 1:1 Dedicated. All Uplinks Dedicated at 1:1
Terrestrial :10,15, 20 Mbps bidirectional at certain Ports of Call and Long Reach from Port of Call to improve Throughputs
Satellite: 512 Kbps & 1 Mbps rates Uplink and matching Downlink rates with terrestrial
Dynamic Least Cost Routing, (Best option for Yachts most of the time docked at Port of Calls)
All year or seasonal options minimum 3 months contracts
Yacht Ku Services Flexibility
Ability to move up or down in speeds as communications needs change
Ability to use terrestrial services with Least Cost Routing at Port of Calls and Long Reach
Each plan includes CIR for the Super & Mega Yachts requirements
All changes in one-month increments
Available as Shared or Dedicated Services
YacthKu Services Hardware
Outdoor Unit

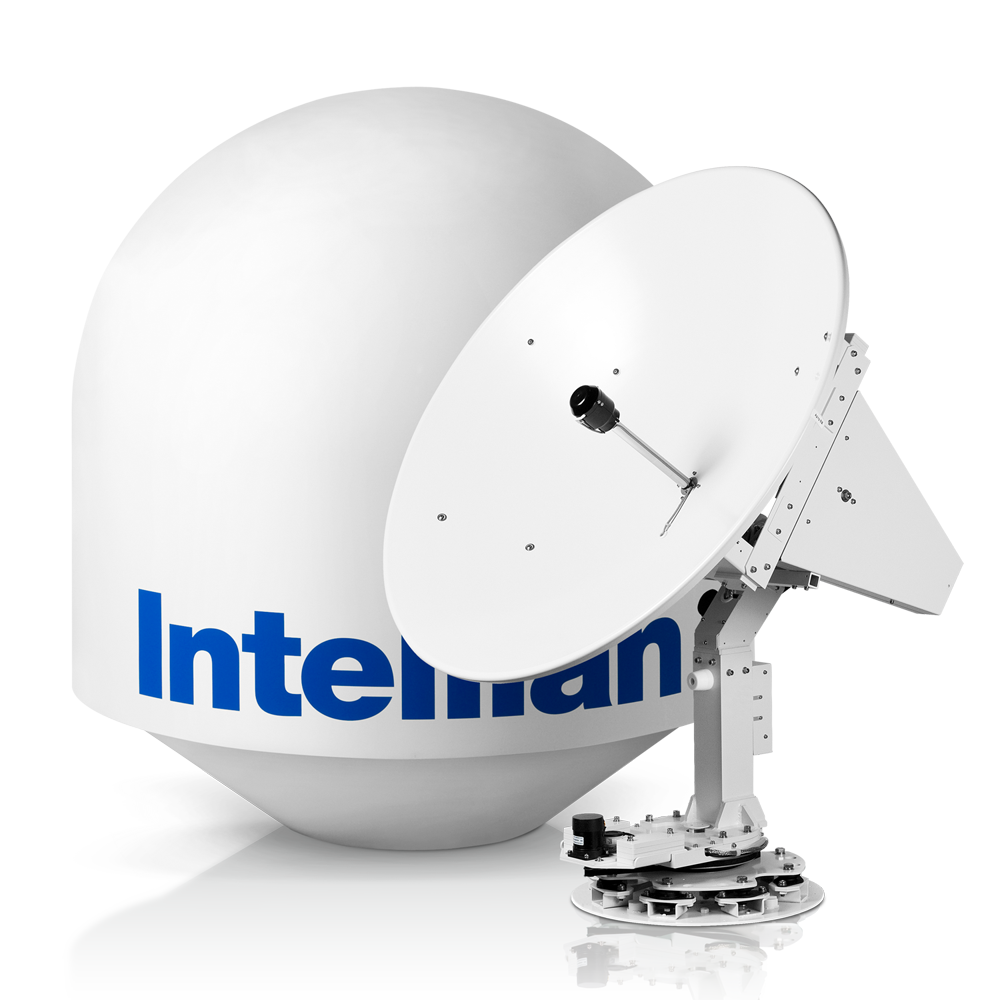

Stabilized Antennas compatibility with SeaTel, Orbit or Intellian
Antenna Sizes: 1.2 mt or 1 m

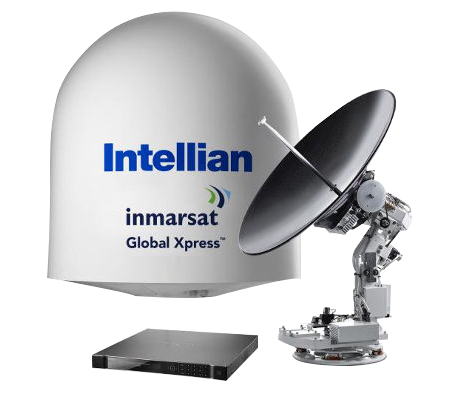

New Services with Intellian 100GX (105 cms) for next Inmarsat GX Ka band Services when available.
TruePath Long Reach Equipment (for Hybrid Services)
Indoor Unit
iDirect X7 Evolution Satellite Modem
RedPort Equipment for Data & Voice Channels Routing
This device performs all Least Cost Routing, Voice and Data Optimization & Compression functions and provides the OBM maintenance capability. Also VoIP A-Z rates for prepaid and post paid rates and Failover capabilities to other sources of Broadband satellite services Inmarsat FleetBroadband or Iridium Open Port
Tripplite 1500 Smart Pro UPS
Provides backup power to the antenna and all other RedKu equipment in case of a shipboard power failure or transitional outage.
Pre-wired Rack mount
Additional Hardware required for Hybrid services
YachtKu Global CIR
and why is so important?
Committed Information Rate (CIR) is guaranteed bandwidth that is not shared by other clients on the network. It guarantees communications when the network is heavily loaded.
How much CIR do the YachtKu Global plans have?
Divide the plan speeds by the contention ratios, and the result is the CIR.
YachtKu Global ABS and why is so importat?
To do it properly requires multiple satellites with wide geostationary separation with overlapping beams.ABS is used to solve blockage issues, whether onboard or nearby. If you only have two satellite close together both may be blocked.
What triggers ABS?
GPS position indicates the vessel is approaching the footprint edge.
Antenna azimuth (to the satellite) approaching a mapped blockage zone.
Reduction of SNR (Signal to Noise Ratio)
OBM command and control ability.
ABS is not instantaneous. A new option file is pushed to the modem and the iDirect modem needs to reboot.
YachtKU Global Summary
Robust Global ABS & Professional shared with CIR or dedicated plans for the Super & Mega Yachts
Flexible contracts not requiring minimum usage obligation (month to month and On-Demand options)
High Throughput Services in the main Cruising areas for Super & Mega Yachts up to 20 Mbps
State of the art Compression and Encryption capabilities
Large plans choice with great flexibility about rates & changes including compressed High Quality VoIP services
Competitively priced TDMA and Dedicated solutions with Satellite Equipment leaders
One SIMPLE Global Price
One STOP Shopping for Super & MegaYachts owners/charters
One NUMBER to call for technical support
New Enhancements with Ka band VSATs for the Yacht Market
What is Ka band VSAT?
Ka band, can be viewed as a new generation of cost-effective skycrappers built on top of the existing city (C- and KU Band)

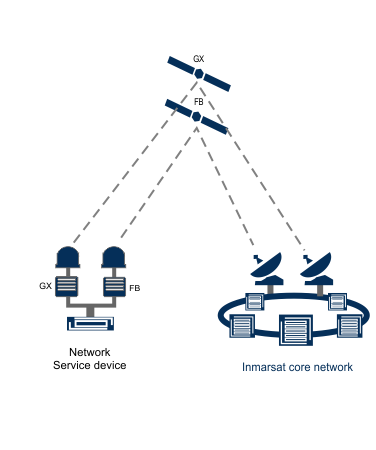

Inmarsat Global Xpress
YachtKa Super & Mega Yachts Communication Solutios
Offers Global Ka band broadband full managed servicesAll plans include:
Automatic Beam Switching (ABS)
Time Division Multiple Access (TDMA)
Highest Throughput in the Satellite market with Committed Information Rate (CIR)
Flexible broadband internet with throughputs up to 8 Mbps Downlink and 4 Mbps Uplink
Global Coverage – one unified Inmarsat-owned network
Flexible contracts – 6 months minimum per year
60 cms antennas available to suit vessels with space, weight or aesthetic limitations
Dynamic Bandwidth Allocation to upgrade for IPTV, Videoconferencing, VideoChat, etc
Sophisticated Bandwidth management – by user, by app, by VLAN
Optional Redundancy with Fleet Broadband
Easy conversions with 1 mt antenna Ku band to Ka band global services (1 day max).
YachtKa Global Hardware
Outdoor Unit
Stabilized Antennas compatibility with SeaTel, JRC or Intellian
Antenna Sizes: 1 mt or 60 cms.
New Services with Intellian v100GX (105 cms) for conversion from YachtKu to YachtKa Inmarsat GX when available or Intellian v60 for YachtKa (see prices for both options)
Fleet Broadband Antenna (optional for backup)
TruePath Long Reach Equipment (for Hybrid Services)
Indoor Unit
TruePath Long Reach Equipment (for Hybrid Services)
Fleet Broadband modem (optional for backup)
RedPort Equipment for Data & Voice Channels Routing
This device performs all Least Cost Routing, Voice and Data Optimization & Compression functions and provides the OBM maintenance capability. Also VoIP A-Z rates for prepaid and post paid rates and Failover capabilities to other sources of Broadband satellite services Inmarsat Fleet Broadband
Tripplite 1500 Smart Pro UPS
Provides backup power to the antenna and all other RedKu equipment in case of a shipboard power failure or transitional outage.
Pre-wired Rack mount
Additional Hardware required for Hybrid services when released
YachtKa Global Summary
Robust Global ABS & Professional CIR plans for the Super & Mega Yachts, with highest available rates in the satellite market
Flexible contracts – 6 months minimum per year or month to month option
60 cms antennas available to suit vessels with space, weight or aesthetic limitations
Dynamic Bandwidth Allocation to upgrade for more demanding video applications
Sophisticated Bandwidth management – by user, by app, by VLAN
Easy conversions with 1 mt antenna Ku band to Ka band global services (1 day max).
One SIMPLE Global Price
One STOP Shopping for Super & Mega-Yachts owners/charters
One NUMBER to call for technical support
Value Added Services for the Yacht Market
Additional VoIP Services
As always these prices are subject to change. Please call to confirm
Service Description
Prices (USD)
DID per line USA*
$40/month first DID, $20/month for additional DIDs
Voice Calls Post Paid USA (unlimited)
$ 100/month
Voice Calls Post Paid Rest of the World
Refer to our A-Z countries table (most common 400 world wide destinations aprox $ 0.25/ min)
Voice Calls Pre Paid USA
$17.50 per 60 min
Voice Calls Pre Paid Rest of the World
$ 20 per 60 min (most common 400 world wide destinations)
One Charge Setup Fee $ 100 USD per voice line
*International non-USD DIDs available, contact us to quote for other 50 countries DIDs
Equipment on board not included, if needed, it is quoted separately case by case according with the simultaneous voice lines required per yacht

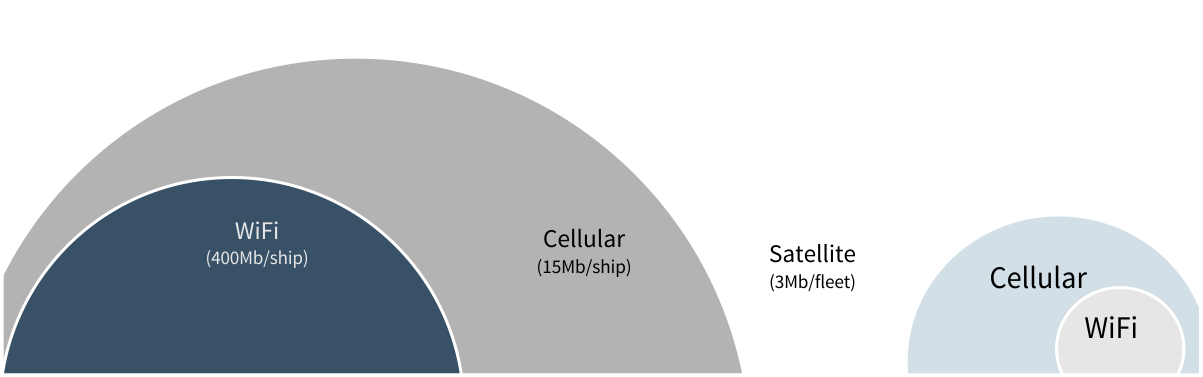

3G / 4G Coastal Service
Internet Extension Bundle
Traffic balanced or aggregated among the connected Wireless / Satellite operators
Dynamic or Static IP Public Address
VPN via Dynamic DNS or bidirectional tunneling
Administration of traffic between 3G / 4G and Satellite / WiFi sources
Up to 4: LTE / CDMA /WiFi / WiMax/ Satellite modems
MIMO/Diversity Antennas
Inbuilt WiFi Access Point and GPS receiver
Up to 3 LAN 10/100 Mbps
Easy Web-based Monitoring
Captive Portal and usage statistics
Bundle all existing Broadband solutions at Mediterranean and Caribbean Seas coverage for optimum Mbps speed rates
Up to 4 SIM cards in the same router (2 per 3G / 4G Modem)
3G/4G Coastal Service
Marine Data Plans & Pricing
As always these prices are subject to change. Please call to confirm
REGION
MEDITERRANEAN
USA & TERRITORIES
MEXICO
CARIBBEAN
CARIBBEAN PLUS
Price (USD/month)
$375
$375
$375
$375
$595
Capacity (Gbytes)
50 Gbytes High Speed Data
50 Gbytes High Speed Data
50 Gbytes High Speed Data
50 Gbytes High Speed Data
50 Gbytes High Speed Data
Period (days)
30
30
30
30
30
Coverage per Price
SIM Per Country*
CONUS , Puerto Rico, US VI
Mexico
Caribbean Zone 1 or 2 or 3
All 3 Caribbean Zones
Contract
NO Contract Pay Month to Month
NO Contract Pay Month to Month
NO Contract Pay Month to Month
NO Contract Pay Month to Month
NO Contract Pay Month to Month
First & Add. Purchases
Online Credit Card
Online Credit Card
Online Credit Card
Online Credit Card
Online Credit Card
# SIMs/Modem**
1+1 backup or 2 or 4 for bonding
1+1 backup or 2 or 4 for bonding
1+1 backup or 2 or 4 for bonding
1+1 backup or 2 or 4 for bonding
1+1 backup or 2 or 4 for bonding
Mediterranean Spain, France, Monaco, Montenegro, Malta, Croatia ,Greece and *Italy (unlimited 4G)
Caribbean 1: Aruba, Barbados, Bermuda, Bonaire, Cayman Islands, Curacao, Dominicana, French Guiana , Grenada, Haiti Jamaica, Panama, St. Lucia, St. Vicent & Grenadines, Suriname, Trinidad & Tobago, Turks & Caicos.
Caribbean 2: Guadeloupe, Martinique, Guyana , St Martin-St Marteen , St Barth.
Caribbean 3: Anguilla, Antigua & Barbuda, UK VI, St Kitts & Nevis
** Not included in the monthly price, quoted & purchased separately
Wifi Optional Extended Range

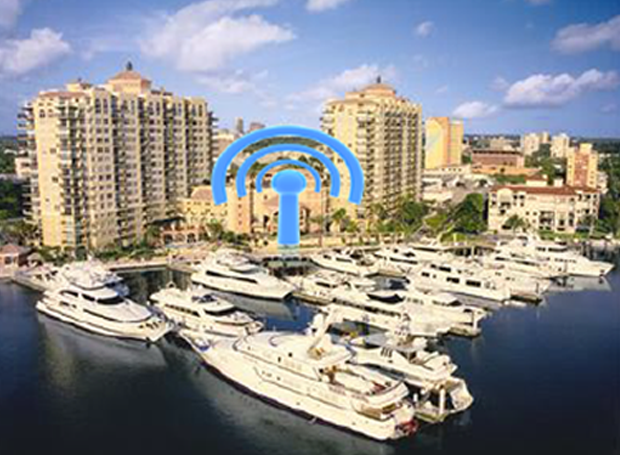

Networking for Marinas
Anyone with a WiFi connection to our hosted WiFi can access within 5 miles
Optimized solution up to 25 miles* with a booster antenna at yacht
All WiFi protocols 802.11 b,g,N
Outdoor Equipment & Cables designed for Marine environments
*For maximum range, experience WiFi host and remote using Wi-Fi protocol 802.11 N must be provided by us. WiFi signals are line of sight. Walls, trees, terrain, sailboat masts, will affect range

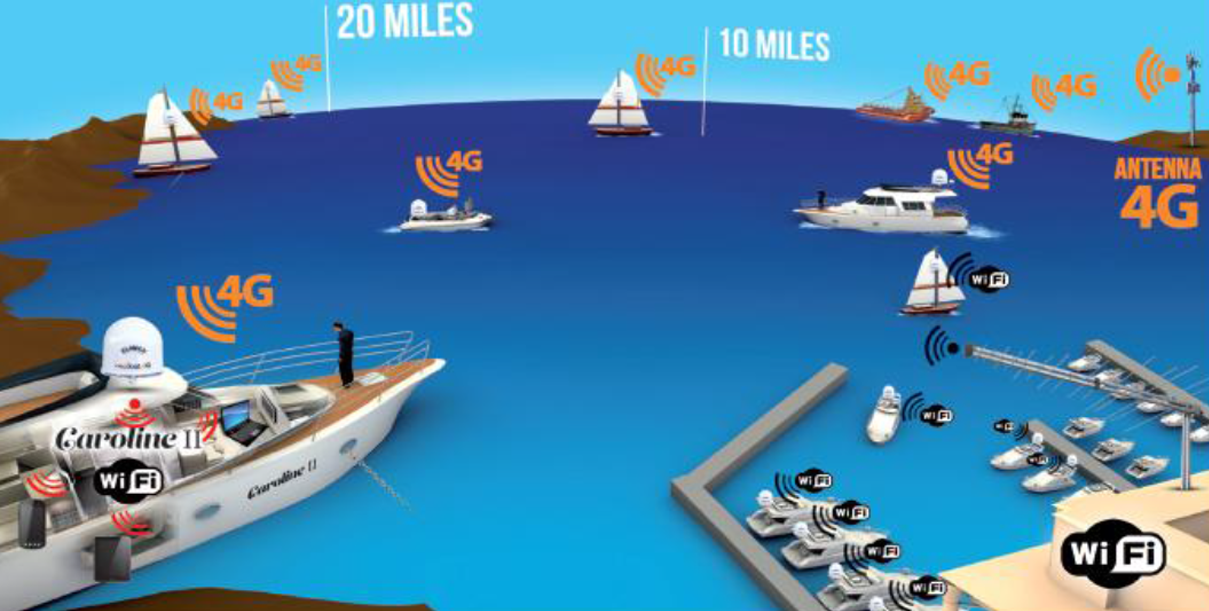

WiFi + 3G / 4G Optional Extended Range Combined

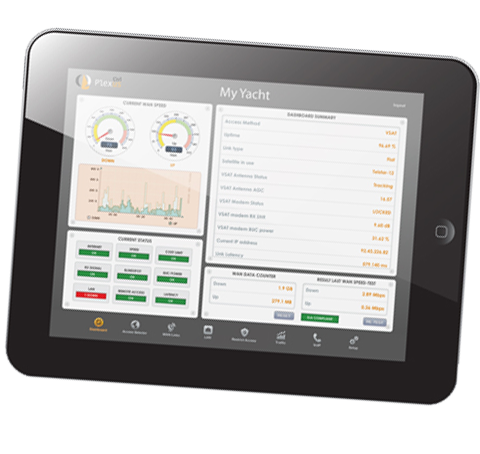

Easy On Board Monitoring & Management Tool
Simple, powerful and intuitive Web Interface , iPhone, iPad or Android App.
Monitor internet users
Real time info on satellite link
Restrict or rate-limit per user
Manage statistics
Least Cost Routing Internet source
VSAT Satellite Beam Switching

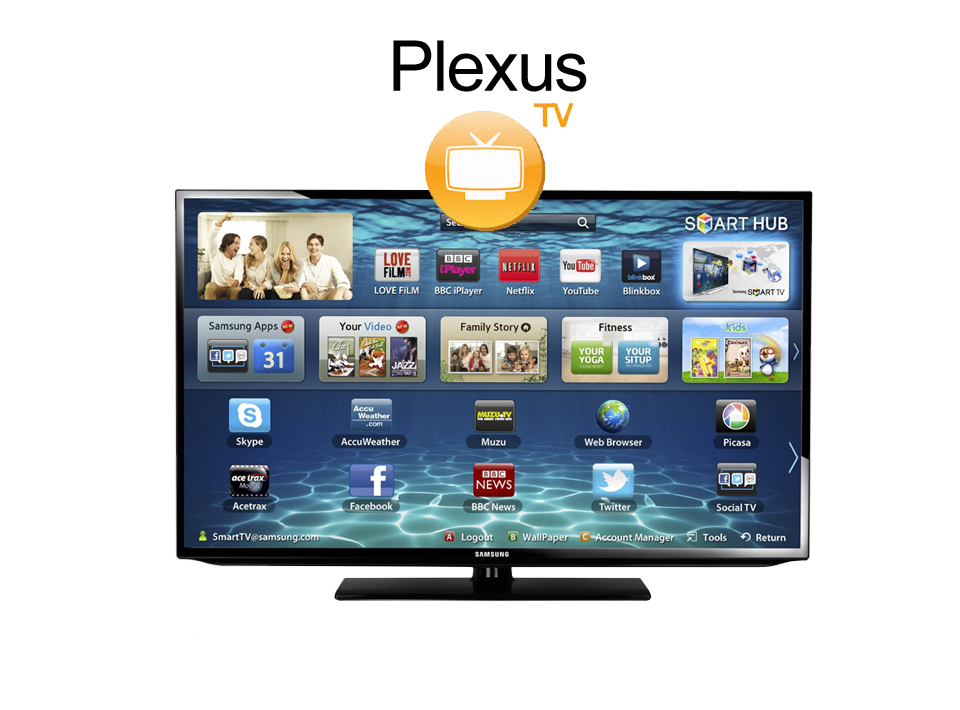

Live TV Optional Services
Plexus TV provides content anywhere no matter the vessel is out of Regional TV Satellite Services}
IPTV stream service
Optimized IP compression
Bandwidth usage from 500 Kbps
Wide Selection of contents with several languages
It can be fully integrated with existing AV system on board

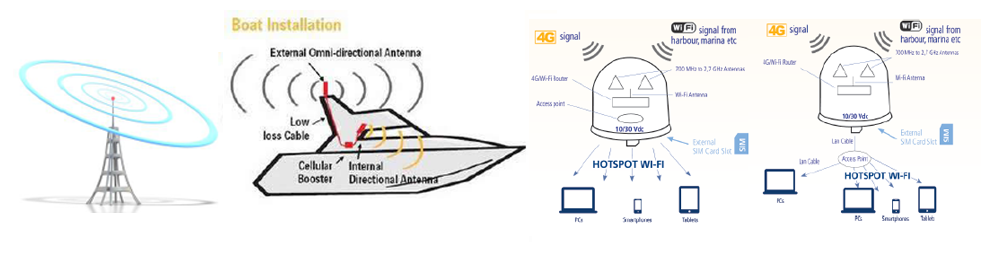

3G / 4G Optional Extended range operation
3G / 4G Signal boosters for yachts close to cellular coverage.
Optimized solution up to 25 miles* to Cell Sites
AC 110V or DC 12V
Outdoor Equipment & Cables designed for Marine environments
3G/4G signals are line of sight. Walls, trees, terrain, sailboat masts, will affect range
Wifi Extension Service
Super WiFi Carrier Class

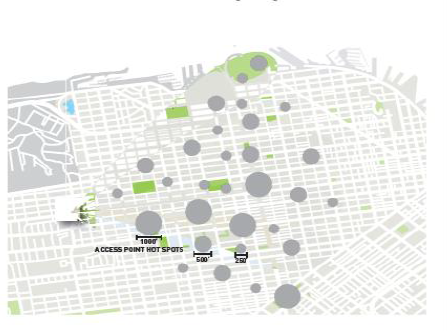

Traditional Wi-Fi Deployment Model
Limited Range (feet)
More access points (ad-hoc)
Less users (10 - 100 per AP)
Increased noise floor issues
High CAPEX / OPEX
ALTAI Carrier Class Wi-Fi
Extended range (miles)
Less access points (Managed)
More users (1500 per AP)
Reduced noise floor issues
Low CAPEX / OPEX

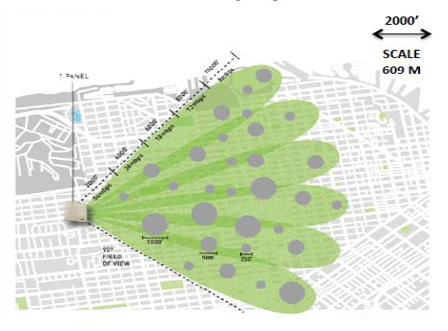

ALTAI A8 SUPER WI-FI BASE STATION

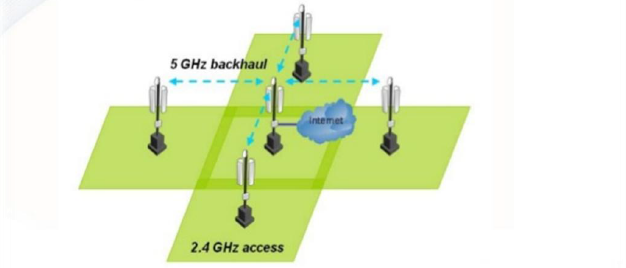

A8 Base station has both a wired ethernet port and 5 Ghz. wireless backhaul for connection to the backend network
Super Wi-Fi Extended range up to 5 Km!
Furthest wifi access in the industry
Range Up to
A8 + km
A8E + Laptop
A8 + C1
A8E + C1
Rural
1
1.7 Km
4 km
5 km
Suburban
500m
800m
2.5 km
3.5 km
Urban
350 m
500 m
1.5 km
2.5 km
Dense urban
250 m
350 m
1 km
1.5 km
Extended Coverage up to 7 km2/site,
Widest wifi coverage in the industry
A8 Site
Each site covers 0.25 - 2 Km2
Each A8 covers 0.25 - 2 Km2
0.5 - 4 sites / km2
A8-E Site
Each site covers 0.65 - 7 km
Each A8 E covers 0.22 - 2.5 km2
0.13 - 1.5 sites / km2
How much Bandwidth do you need for Value Added Services?
Voice (i.e. Skype vs our VoIP)
Open and Idle = 5 to 10 Kbps (with our VoIP services max = 1 Kbps)
Calling = 32 Kbps both directions minimum, 48 Kbps standard, 64 Kbps recommended (with our VoIP services max = 6 Kbps both directions)
Video Calling
Video Calling = 128 kbps both directions minimum, 300 Kbps recommended
Video Calling High Quality = 400 kbps both directions, 500 Kbps recommended
Video Calling HD = 1.2 Mbps minimum, 1.5 Mbps recommended
Video (i.e, Netflix)
900 Kbps minimum for standard resolution
4 to 6 Mbps for HD
IP Tunneling (i.e. VPN Real Time data applications)
CIR required, application dependant
IP Video Streaming (i.e. Addressable Surveillance Cameras)
CIR required, Frame Per Seconds (FPS) and Video Quality dependant.
