the Cruise KA full managed services offer Cruise lines high throughput capacity ver premium Cruise Markest regions:
Caribbean
Mediterranean
USA Atlantic Coast
North Pacific (Hawaii)
South Pacific
Both plans include:
Private pool of bandwidth per fleet & per region.
Transfer of bandwidth according with cruise´s seasons
Least costo routing to terrestrial wireless services when ship arrives at port of calls.
Cruise KA Service Plan
Flexible broadband internet with troughtputs form 10 up to 300 Mbps downstream two options:
Dedicated per ship downstream
Dedicated per fleet downstream
All upstream are dedicated from 2 up to 150 Mbps.
Coverage over western, eastern & southern Caribbean.
Terrestrial wireless services over more than 40 ports of calls in the Caribbean when cruise ship arrives at those ports to match capacity in the satellite.
.

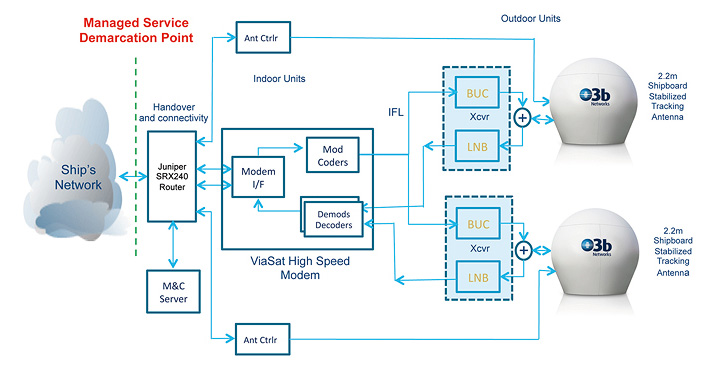

Cruise Ka Hardware
1.2 m y 2.2 m Ka stabilized terminals
Size
Data Rates
1.2 m
5 - 100 Mbps
2.2 m
100 - 300 Mbps
Dual tracking antennas provide seamless handover at end of pass and in case of blockage.
3rd. hot-standby spare antenna and spare modem for redundancy.
On Marine Optional Services
Mobile On Marine enables users on offshore installations to use their mobile phones in the same way they do on land.
Costs are in line with international roaming rates as appear on individual monthly mobile phone bills.
Mobile On Marine supplies the roaming infrastructure which allows people to use their mobile phones, smartphonesand tablets in the same way as international roaming.
Bandwidth required min. 256 Kbps up to several Mbps depending on simultaneous number of calls.
Internet On Marine enables users to connect to the Internet from laptops, tablets and smartphones over WiFi by simply launching their browser as they would in any hotspot
Internet On Marine homepage then guides them through the process.
Homepage customized in several languages
Major credit cards are accepted
Cruise KA Hybrid Solution
Caribbean Region
Two networks per fleet
Cruise KA Hybrid Solutions
North Caribbean Ports of Call Coverage
Cruise KA Hybrid Solutions
East Caribbean Ports of Call Coverage.
Cruise KA Hybrid Solutions
South Caribbean Ports of Call Coverage.
Cruise KA Hybrid Solutions
West Caribbean Ports of Call Coverage.
Value Added Services for the Cruise Market
Cruise KA Hybrid Solutions
On Marine Value Added Services (VAS)
Mobile on Marine enables users on offshore installations to user their mobile phones in the same way they do on load.
Costs are in line with international roaming rates as appear on individual monthly mobile phone bills
Mobile On Marine supplies the roaming infrastructure which allows people to use their mobile phones, smartphones and tablets in the same way as international roaming
Bandwidth required min. 256 Kbps up to several Mbps depending on simultaneous number of calls
On Marine Value Added Services (VAS) • Internet On Marine enables users to connect to the Internet from laptops, tablets and smartphones over WiFi by simply launching their browser as they would in any hotspot.
Internet On Marine homepage then guides them through the process
Homepage customized in several languages
Major credit cards are accepted
Cruise KA
How Roaming On Marine Works.
Mobile phones or smartphoneson-board are used as they do on land
Miniature cell base station picks up the signal
Signal is processed by the on-board GSM server
Signal is transmitted via RedCsatellite link
Ground GSM infrastructure process signal and directs traffic to called party,
The reverse path from land to vessel is the same vice versa
Cruise KA
Replicated / Extended
WiFi Ship Spots at Destination Ports of Call
Clear Advantages
Tourist & Excursion facilities attract Passengers at their premises!!
Tourist & Excursion attractions pay for the service to be advertised at Ship Spots Maps Onboard and at Cruise Line Apps!
Passenger’s Internet Traffic is spread out at Shore with local ISPs!! At the same fee (or Delta price) per day
Passengers can download and upload faster meanwhile at these Onshore ShipSpots with local ISPs
Cruise ship crew can send important text messages to passengers meanwhile at Port of Call.
Passengers coordinate better between families or groups with Text messages at these Ship Spots
Increase Passengers Security
Cruise KA
Customized
Cruise App for passengers
Basic Technical Options
Cruise Company Info (Common Information, Cruise Preview, Special Offers, Ship Time, etc)
Current Cruise Information (Cabin #, Duration, Itineraries, Cruise Time etc)
Ship Information (Restaurants & Bars, Shopping, Entertainment, etc)
Shore Excursion Information & Booking
Individual City Tours available or booked (Audio guide, Offline Maps, Time to come back to ship, Discount Coupons, etc.)
Communication Systems (WiFi ShipSpots Finder, Messenger, Voice Calls, family location, cruise line passenger announcements, emergencies texts onboard and during ports days etc.)
Main Specifications
Customized design
Functionality adapted as required
Database-supported customer access via CMS
Automatic updates via API
Easy to modify and quick to update
App update via the local Cruise Ship server
Android & iOS Smartphones compatible
WiFi Ship Spots Finder
Basic Operation
During Online operation the passenger can:
Find World WiFi network per Destination Port
Display Self Location in Map
Advanced Search by Name/Port/Category
Download World WiFi Network per Port for Finding ShipSpots when not online
Purchase Additional Weeks Access During Offline
During Offline operation the passenger can:
Display in Map ShipSpots downloaded per Port and Filter by Category for easy localization
Display a List of ShipSpots per Port and Filter by Category with additional information as Addresses, SSIDs, Passwords to Copy & Paste and comments or advertising about the merchant.
Cruise KA Leading Partners
O3b is a High Throughput Satellite Network provider with Ka band space segment and teleports
Intellian will deliver unique Multiband VSAT antennas for cruise vessels
C&W Networks building substantial terrestrial infrastructure in the Caribbean for hybrid services
Wi-Fi worldwide High-Speed Internet Access at Local Rates with One Account for all the ShipSpots at Port of Calls
e3 Systems is providing all the expertise required to install manage and control the cruise lines networks
OnAir created the OnMarine roaming and WiFi services for the Maritime Market. Also a leader for in-flight entertainment
TruePath Marine Communications provides the most advanced broadband radio solution
Leading provider of Least Cost Voice & Internet, WiFi Hotspots
SeaGlobal has partnered with industry leading companies to spur the development of innovative maritime satellite services
